New Standards in Drive Technology
Archimedes Drive
Zero-Backlash, High-Precision Speed Reducers for Next-Gen Robotics
Technology
Discover the innovation behind the Archimedes Drive: a compound planetary traction drive. This distinctive configuration ensures unparalleled accuracy and transparent controls, setting a new standard in drive technology.
Products
The Archimedes Drive is now configurable for a magnitude of different applications. Catering to diverse requirements, our series offers multiple torque ranges, each boasting an impressive lost motion of less than 0.3 arcmin, 25x stiffer designs and all with inherent overtorque protection.

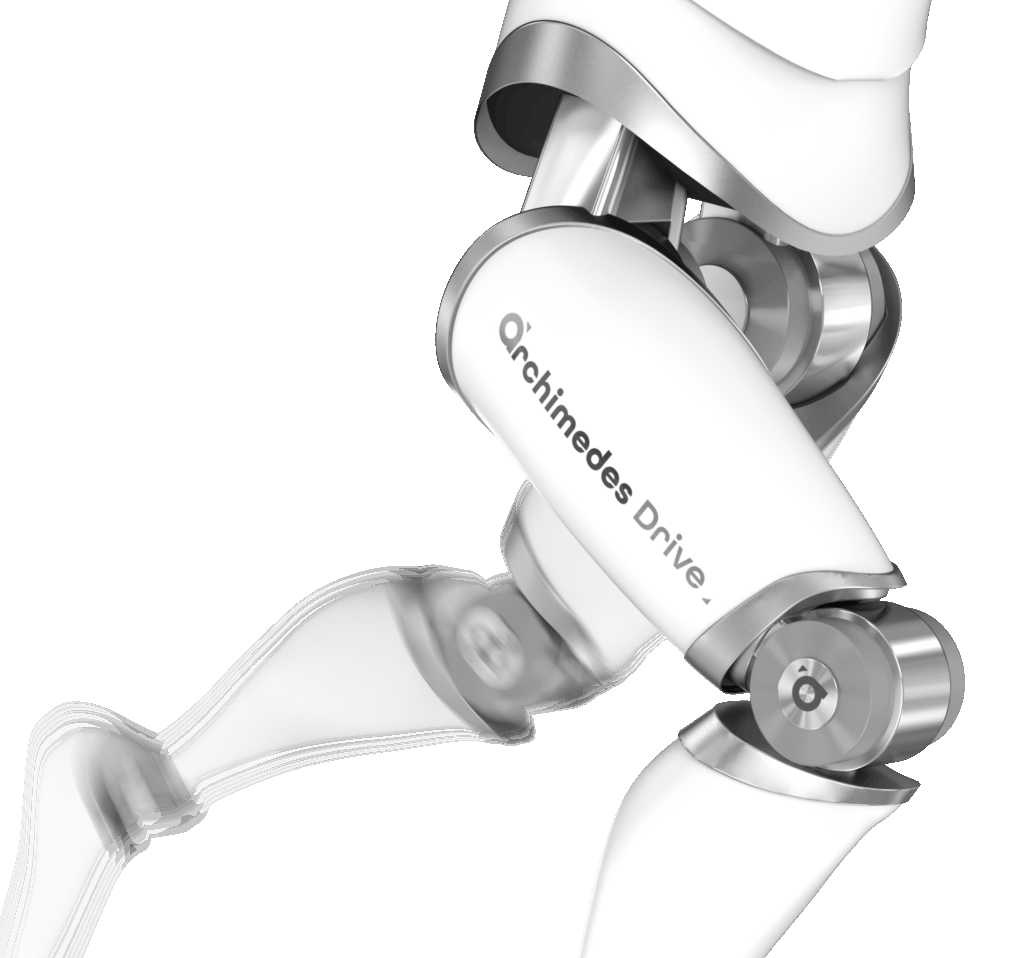

Archimedes Drive
- 100% True Zero Backlash
- 3x More Accurate
- 10x Stiffer Design
- 90% Efficiency
- 32x Less Intense Noise
- Overtorque Protection
- Easily Backdrivable
More Accurate Movements
The true zero backlash design of the Archimedes Drive significantly enhances up to 3x movement accuracy.
No Failure When Overtorqued
Absorbs shocks, vibrations and collisions, without significantly damaging the actuator.
Reducing Vibrations
High stiffness in combination with zero backlash, greatly reduces end-effector vibrations and offers smooth rolling contac.)
32x Less Intense Noise
Discrete and more comfortable operating noise for humans and the environment.
Simplified
Control
Its transparency simplifies the control system, resulting in less workarounds and easier coding.
Archimedes Drive now available
Experience a new era of precision with the Archimedes Drive planetary traction setup. Its continuous rolling contact surfaces ensure effortless control and unparalleled accuracy in operations.
Leveraging compound technology, the Archimedes Drive can be tailored to a wide range of reduction ratios, all while maintaining exceptional torsional stiffness.
| Specification | Unit | DELTA 15 | DELTA 250 | EPSILON 250 | EPSILON CUSTOM | SYNOVIAL 75 | COMPONENT SET |
|---|---|---|---|---|---|---|---|
| Repeated torque | Nm | 15 | 250 | 250 | 1 - 500 | 75 | 1 - 500 |
| Maximum Input Speed | rpm | >8,000 | >8,000 | >8,000 | >8,000 | >8,000 | >8,000 |
| Max. Lost Motion | arcmin | 0.3 | 0.3 | 0.8 | 0.8 | 0.3 | 0.3 |
| Output Rotation | degree | 270 | 270 | continuous | continuous | continuous | continuous |
| Efficiency | % | >90 | >90 | >90 | >90 | >90 | >90 |
| Diameter | mm | 72 | 120 | 120 | tailored | 70 | tailored |
| Length | mm | 60 | 180 | 160 | tailored | 90 | tailored |
| Weight | kg | 1 | 10 | 8 | tailored | 1.1 | tailored |
Main Applications
Powering the Future of Technological Advancements
Historically, major technological leaps have stemmed from groundbreaking advancements in power transfer. At IMSystems, we believe the Archimedes Drive is the catalyst for the next wave of innovation.
Empowered by a blend of ingenious product solutions and a passionate team, we’re not just creating state-of-the-art drives; we’re partnering with engineers to shape the future of mechatronic applications. Our mission? To be the driving force behind tomorrow’s innovations.
Latest posts
Precision or Accuracy? How the Archimedes Drive offers both
Discover how the Archimedes Drive ensures high accuracy with stiffness and precise movements with true zero backlash for optimal robot performance.

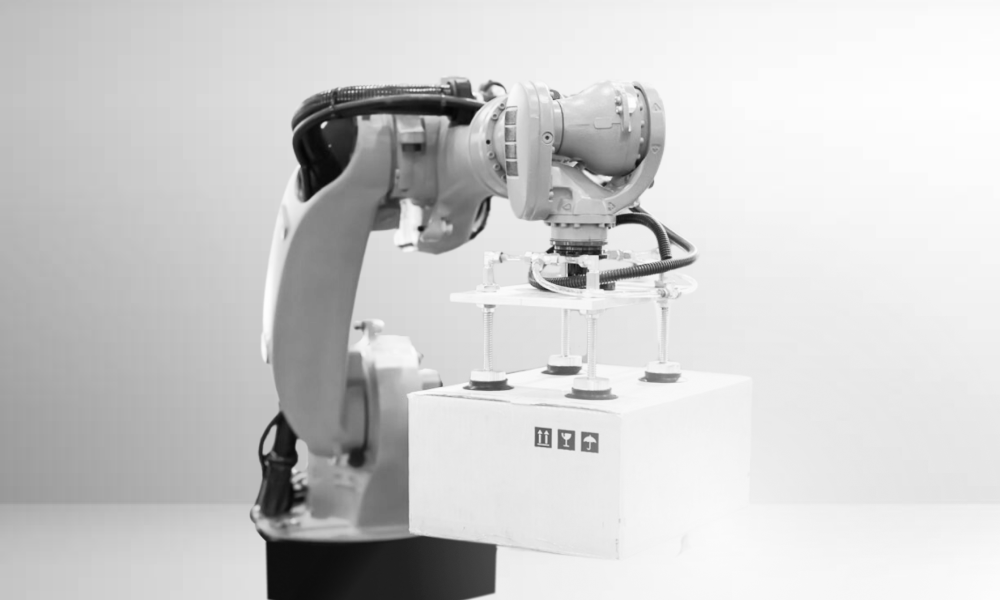

How the Archimedes Drive will Accelerate the Mass Production of Industrial Robots

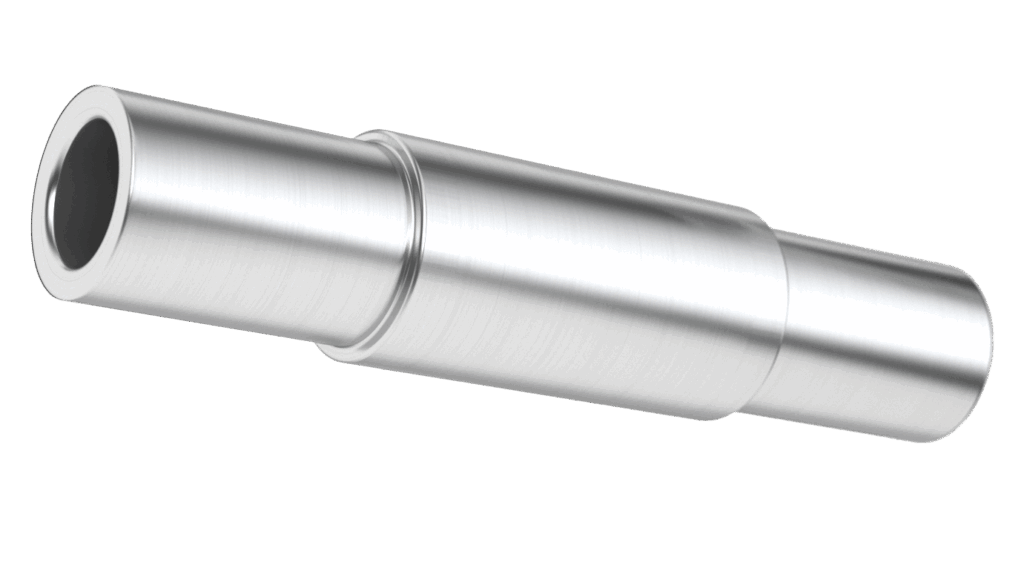

With an aging population and rising demand for robots, the Archimedes Drive, made of hollow cylinders, addresses the challenge of complex robot components that take up to a year to produce
Revolutionizing Industries with the Archimedes Drive
How can the Archimedes Drive improve the performance of robots that produce your favourite products?
Latest Videos
Elevating Mechatronic Standards
For the discerning innovator, the Archimedes Drive presents a paradigm shift in speed reducer technology. Its planetary traction setup, underpinned by continuous rolling contact surfaces, ensures exceptional stiffness—a critical factor in precision applications. Experience minimal lost motion, a testament to the drive’s design accuracy, coupled with the capability to handle high input speeds. Dive into the technical intricacies and explore how the Archimedes Drive can be a transformative element in your next mechatronic design project.
